MC20


MC20 - Copy.jpg

For 0.77” and 19.5mm panels, Where high pressure laminates are used. Machine either with MCC or MCV for CNC volume production.
Download JPG | PDF

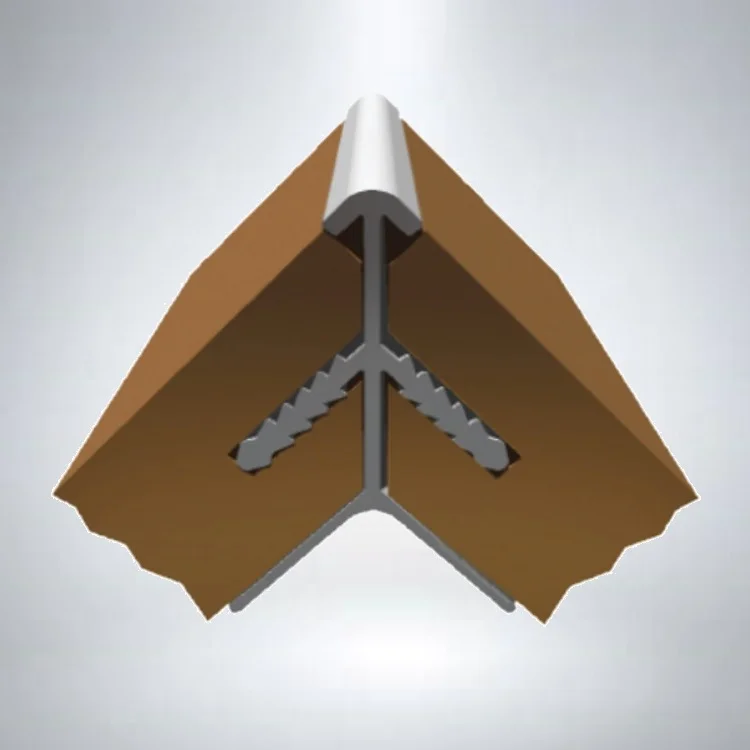

MC18


MC18 - Copy.jpg

For 0.71" and 18mm panels. Mitre corner with round profile. Machine either with MCC or MCV for CNC volume production.



Download JPG | PDF

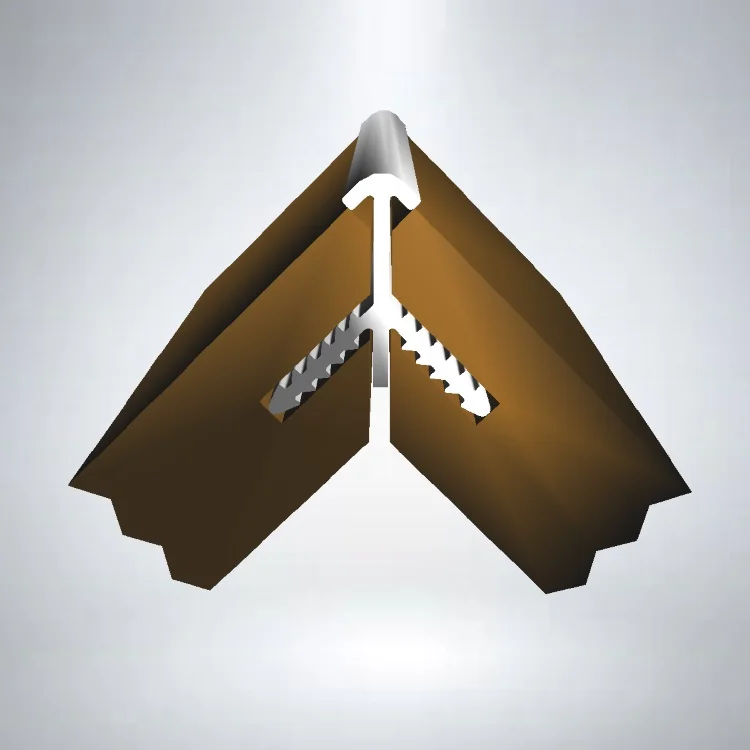

MC90


MC90-1 - Copy.jpg

For 3/4", 18mm and 16mm panels. Stickman's legs removed to avoid need for packing out of panels. Machine either with MCC or MCV for CNC volume production.


Download JPG | PDF


MC16



For 16mm and 5/8" panels. Machine either with MCC or MCV for CNC volume production.





Download JPG | PDF


MC13



For 1/2" and 13mm panel where reduction in weight is sought. Machine either with MCC or MCV for CNC volume production.





Download JPG | PDF

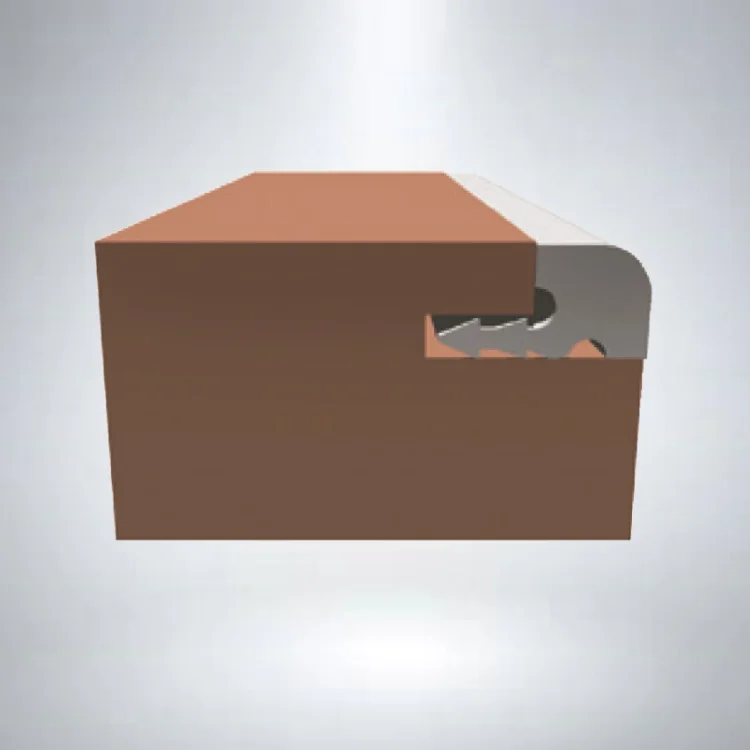

MCED



For 3/4", 18mm, 16mm, and 12mm panels to provide corner protection. Machine with MCEDCUT



Download JPG | PDF



MC3



Injection moulded corner. Eliminates the need to mitre three way corners.
Integral colour or satin chrome finish.




Download JPG | PDF




MC19


MC19 - Copy.jpg

For 3/4" and 19mm panels. Machine either with MCC or MCV for CNC volume production.


Download JPG | PDF

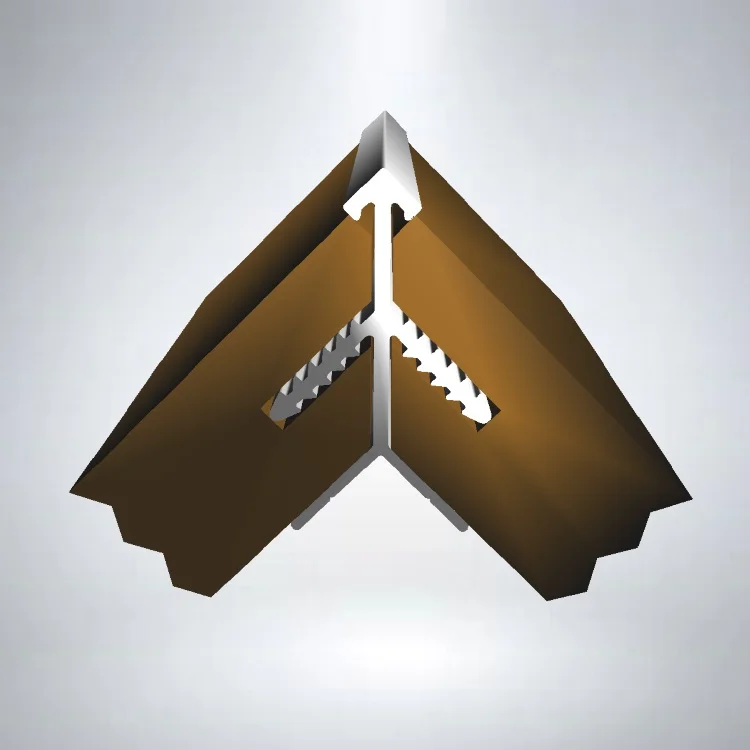

MCS18


MCS18AN (1).jpg

For 0.71" and 18mm panels. Mitre corner with square profile. Machine either with MCC or MCV for CNC volume production.



Download JPG | PDF

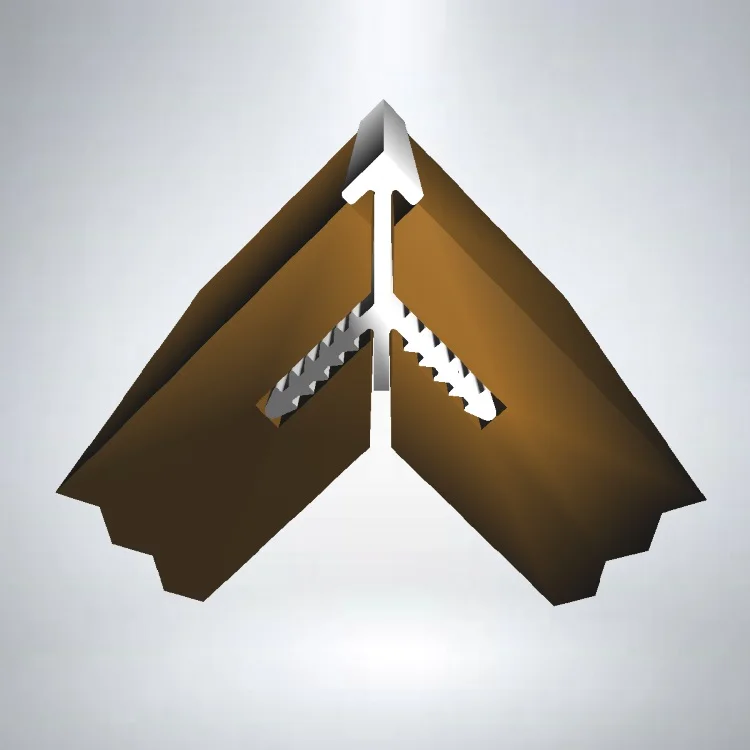

MCS90



Square corner for 3/4", 18mm and 16mm panels. Stickman's legs removed to avoid need for packing out of panels. Machine either with MCC or MCV for CNC volume production.


Download JPG | PDF


MCS16



For 16mm and 5/8" panels. Mitre corner with square profile. Machine either with MCC or MCV for CNC volume production.


Download JPG | PDF




MC12



For 12mm panel where reduction in weight is sought. Machine either with MCC or MCV for CNC volume production.




Download JPG |

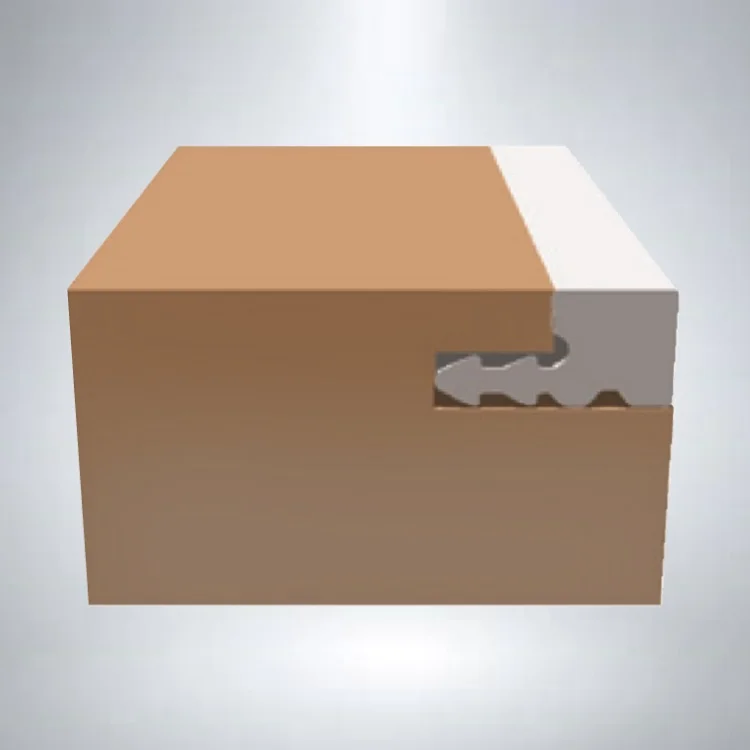

MCSED



For 3/4", 18mm,  16mm and 12mm panels to provide corner protection. Machine with MCEDCUT



Download JPG |

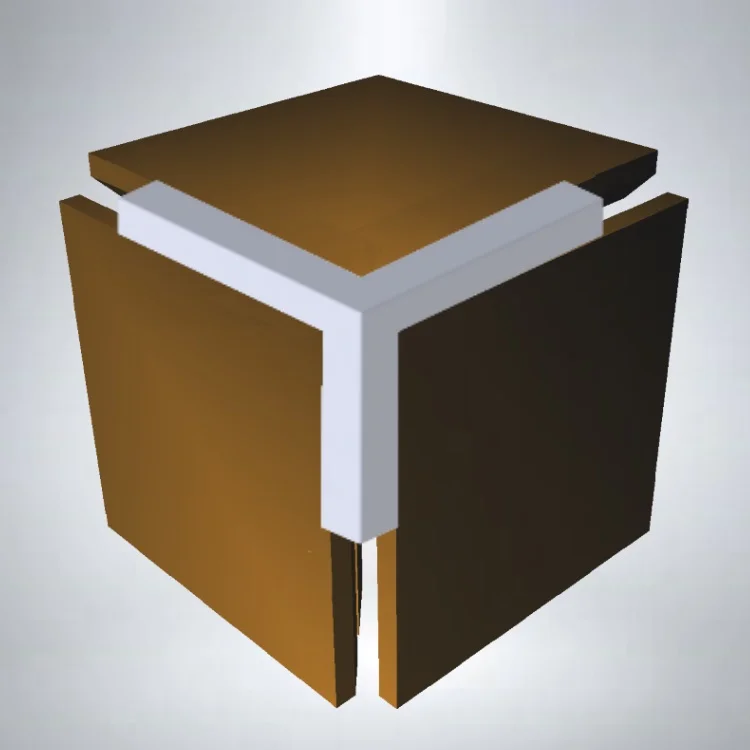

MC3-SQ



Injection moulded corner. Square. Eliminates the need to mitre three way corners.
Integral colour or satin chrome finish.



Download JPG | PDF




MCS19


MCS19AN - Copy.jpg

For 3/4" and 19mm panels. Mitre corner with square profile.  Machine either with MCC or MCV for CNC volume production.

Download JPG | PDF


MC18LP



For 3/4" and 18mm panels. Where the KD assembly benefits are sought but also desire to be visually discreet. Machine either with MCC or MCV for CNC volume production.

Download JPG | PDF




MC135



Machine either with MCC or MCV for CNC volume production.







Download JPG | PDF

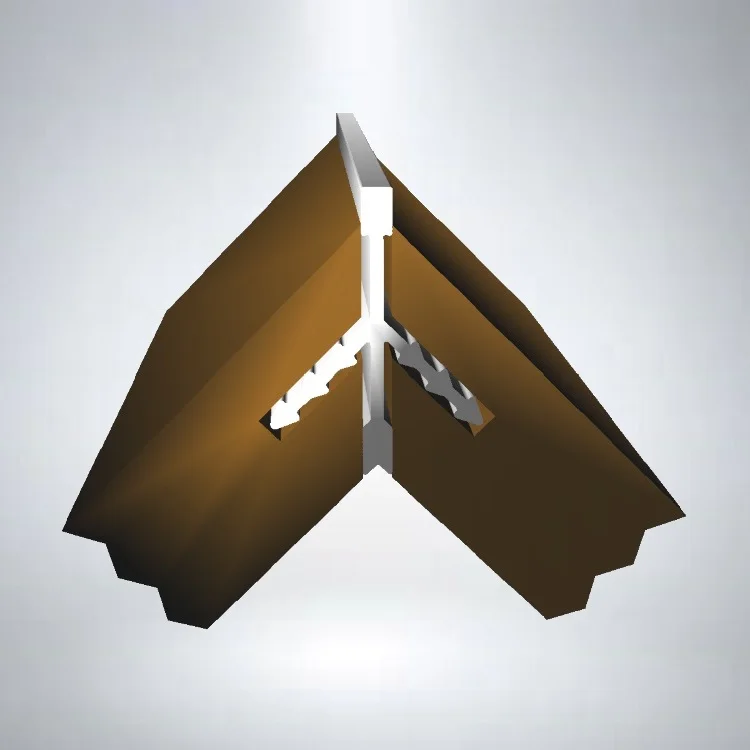

MCLN-CORN



Cutter; MCC for fixed router.  MCV and MCHDC for CNC router

See Panel Accessories for complete MCLIN System

Download JPG | PDF | PROMO

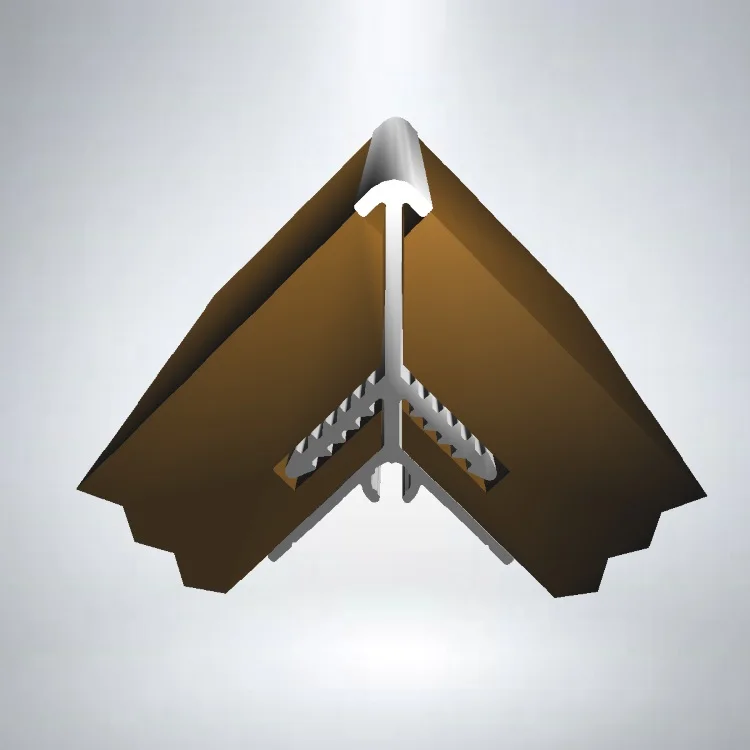

MC18X



MC18X for 18mm PLANKWALL (slatwall) towers where maximum merchandising space is sought and least vertical corner profile is visible. Machine either with MCC or MCV for CNC volume production.


Download JPG | PDF


RA18AN



For use with 18mm and 6mm panels on tower and furniture items. Other types of 6mm panel materials can be used. Possibly for illuminated signs.


Download JPG | PDF

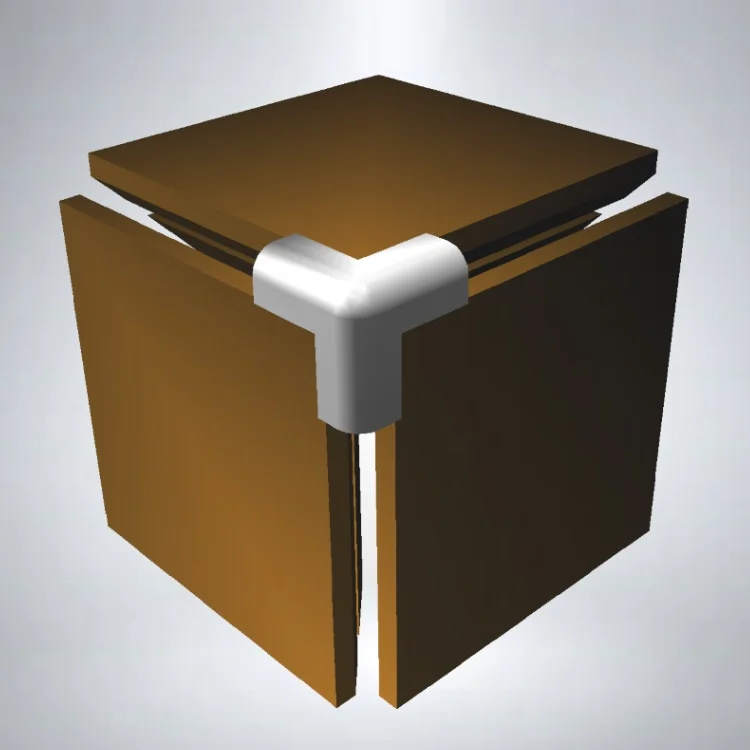

MC3S




Injection moulded corner. Satin Chrome finish. Small, 0.59 inch/15mm.





Download JPG | PDF
