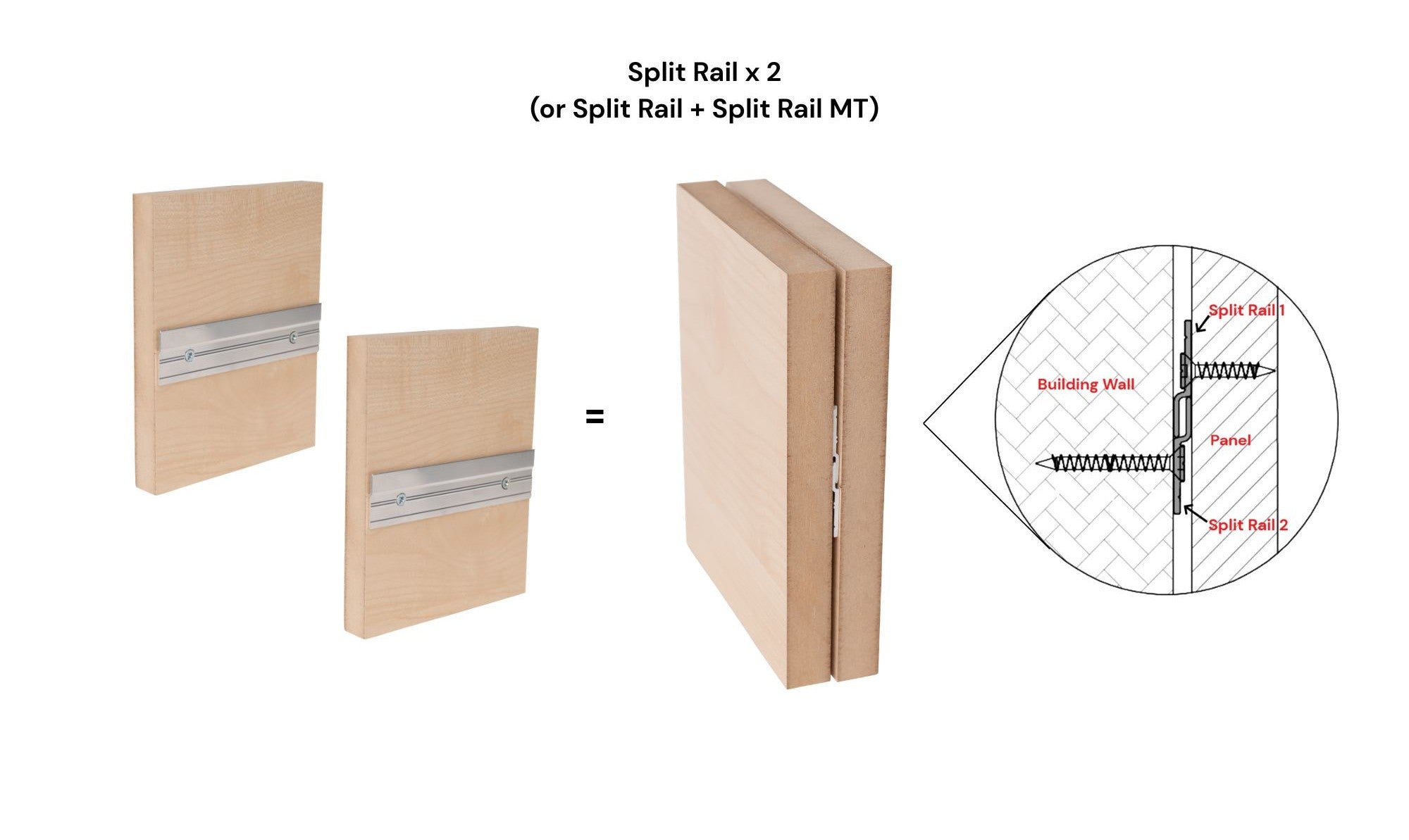

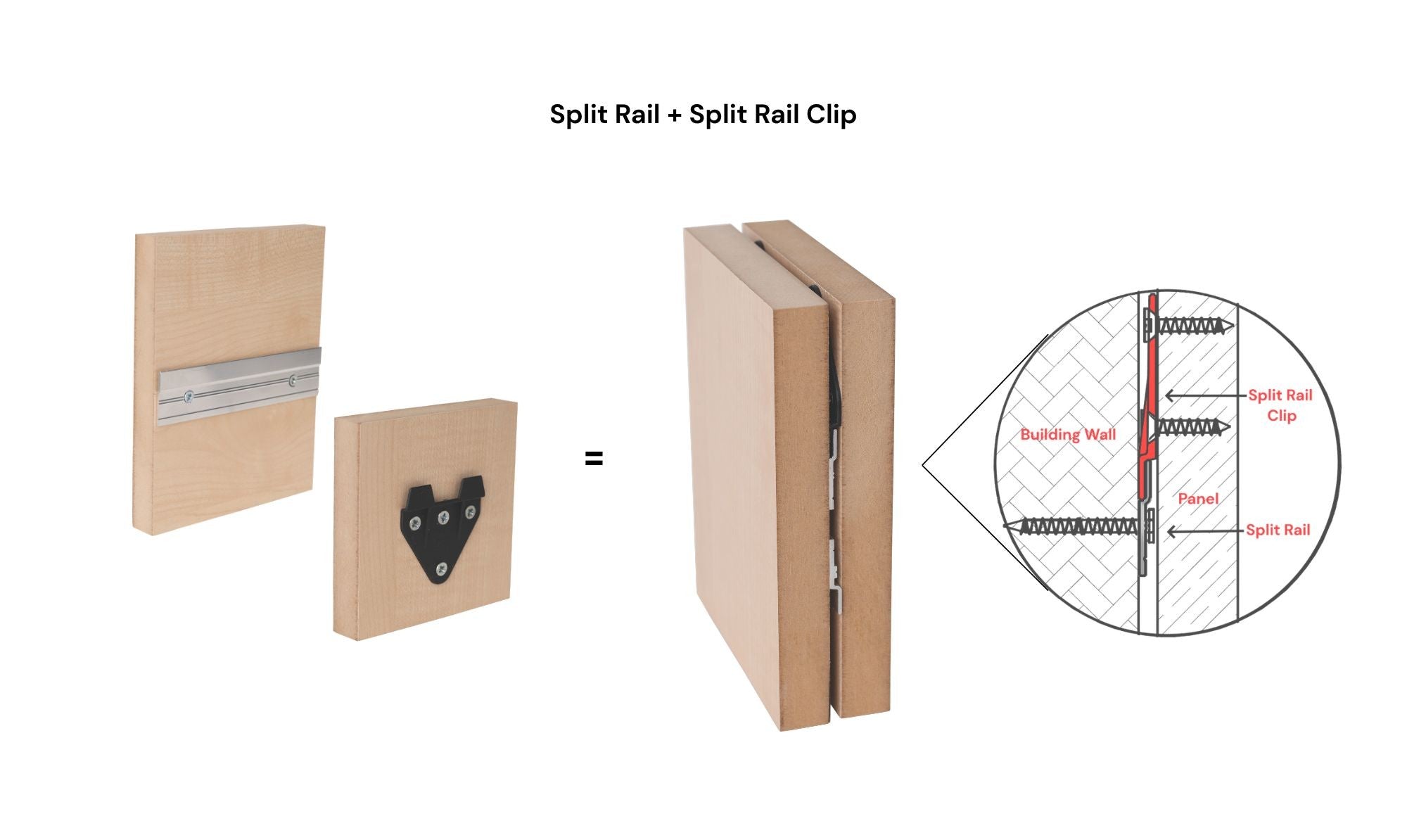

Split Rail is an aluminium interlocking Z-cleat system, also known as a split batten or French cleat, for securely mounting panels, cabinetry and other wall-mounted elements while maintaining clean, uninterrupted surfaces.
Designed for alignment, removability and consistent installation across a range of panel, display and interior applications.
Use the Split Rail Panel Hanging System for:
- Concealed fixing with no visible hardware
- Fast, intuitive installation on site
- Strong, stable aluminium mounting
- Uneven walls where extra installation tolerance is needed
Suitable for:
- 9mm (3/8") – 25 mm (1") panels
- Wall panels and feature panels
- Cabinetry and wall-mounted joinery

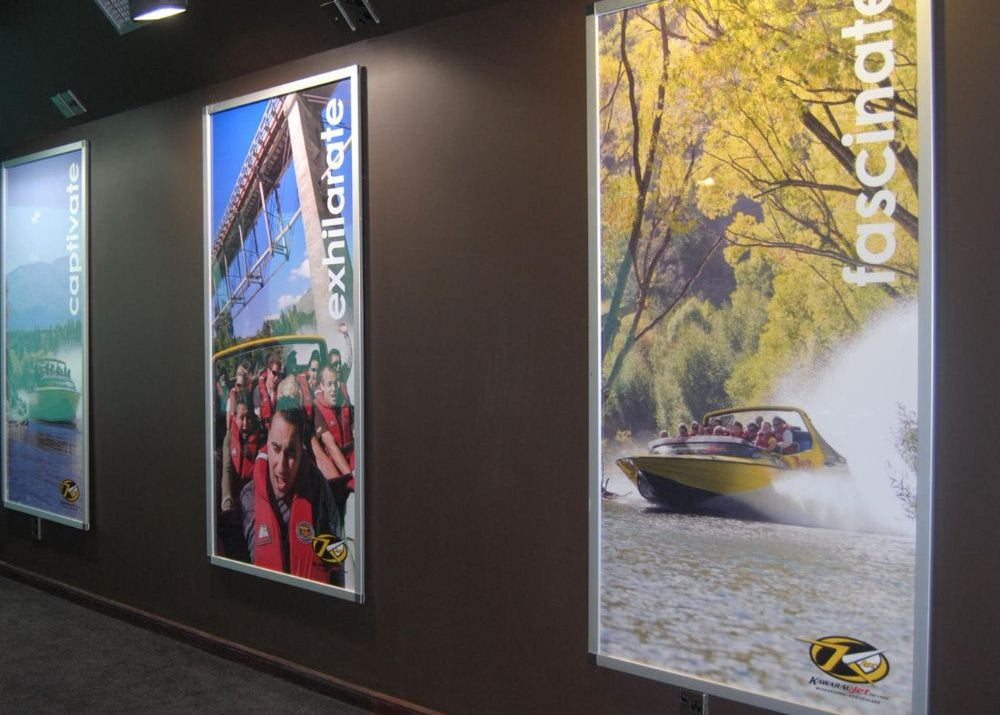

- Artwork, mirrors and displays
- Other concealed wall-mounted applications

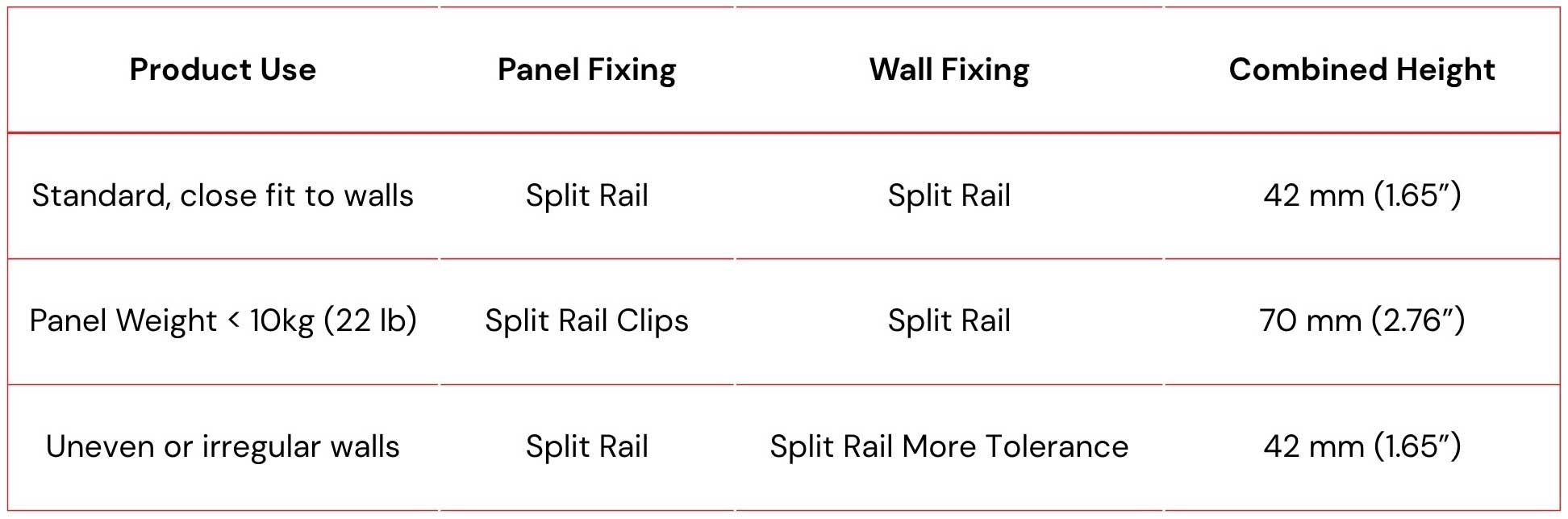

System Selection Guide

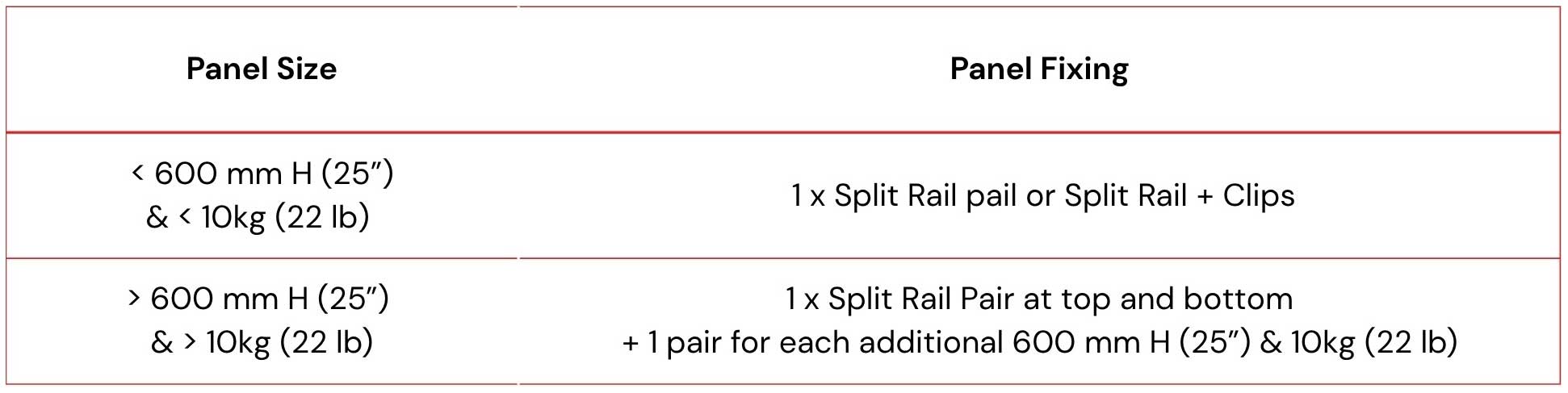

Use the correct number of Split Rail pairs (and Split Rail clips) for panel weight and size. View the Split Rail Installation Guide for further details and technical information.
Still have questions?
Contact us with any questions or download the Stickman Split Rail Panel Hanging System Installation Guide for further details.
